Defying the storms to avoid delays.

Related downloads

The case

In 2011, Mammoet was contracted to push up an offshore deck at its fabrication site in South Korea. The 23,178-ton deck had to be raised to a height of 26.5 meters – a world record lift in itself. But the push-up was also scheduled close to the end of the typhoon season. Fifteen push-up towers and an additional bracing system were brought in to safely lift the deck while maintaining enough durability to survive a typhoon storm. In doing so, Mammoet essentially extended the available weather window.

A world record push-up in the wake of typhoon season.

The typhoon season threw down an extra big challenge for this project. One late storm and the entire operation and everyone involved could be in danger. To be on the safe side, Mammoet developed a special lifting system able to withstand wind speeds of up to 30 m/s – enough to ride out any storm nature might throw at it.

Lifting operation designed to survive a typhoon extends fabrication time.

North Rankin B, South Korea

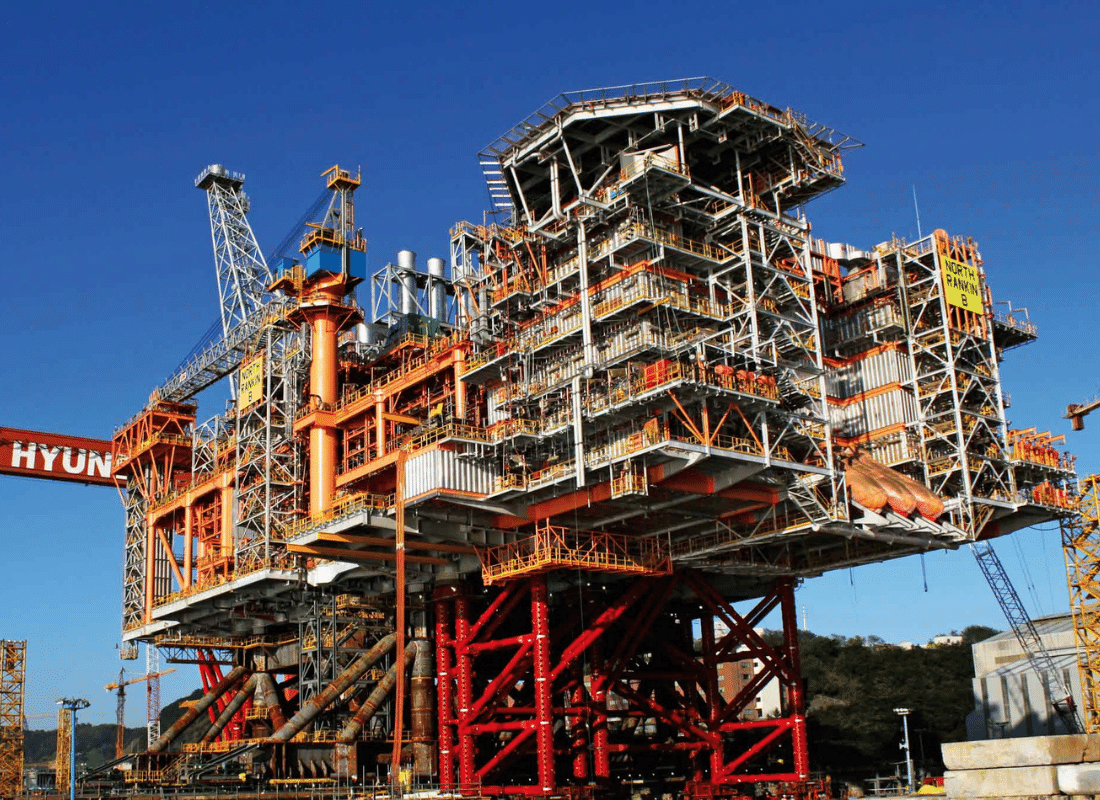

Gearing up against the elements, Mammoet mobilized fifteen push-up towers and developed additional jacking cans and bracing pipes. A total of 155 containers of equipment were shipped in from all over the world.

Oct 18 2011 Enough strenght to ride out a typhoon

Oct 22 2011 The push-up towers at work

Oct 23 2011 Working day and night

Oct 25 2011 Safely placed onto the deck support frame

In a joint effort between Mammoet Malaysia, Singapore and Holland, the 2,400-ton push-up system was assembled next to the deck and skidded into position. After lifting the platform off of its construction supports, it was jacked to a 12-meter height. From that position, a round-the-clock operation of jacking and bracing began.

After seven days, the deck was safely placed onto the deck support frame. By creating a weatherproof push-up system, Mammoet bought deck owner, Woodside, more time to get the job done. In the process, this project made it into the Guinness Book of World Records for the heaviest lift on land.
