Mammoet converts CC 2800-1 to narrow track in Brazilian fleet

  • Onshore Wind

  • Heavy lifting

  • Optimized schedule

  • Brazil

A specialized crane will help tackle the needs of the growing wind market.

Many wind farms in several countries, including Brazil, have narrow internal roads of 6-7 meters wide. This restricts the use of conventional crawler cranes, as conventional machines are severely restricted in relocating between turbines.

The narrow track cranes can crawl in between turbines with no or partial disassembly, ultimately saving money in civil works and time in dismantling, transport, and subsequent re-erection of the crane.

Mammoet, the world’s largest engineered heavy lifting and transport service provider, has introduced a narrow track CC 2800-1 to its fleet in Brazil in order to support the country’s wind sector. This updated machine will strengthen Mammoet’s position in the local wind market, which is one of the fastest-growing markets in South America.

The 600-ton CC 2800-1 crane was originally located in Texas; however, it was not in use.

Teams in Brazil and Texas recognized that converting the existing machine to a narrow track configuration would bring new life and much-needed addition to the Brazilian fleet.

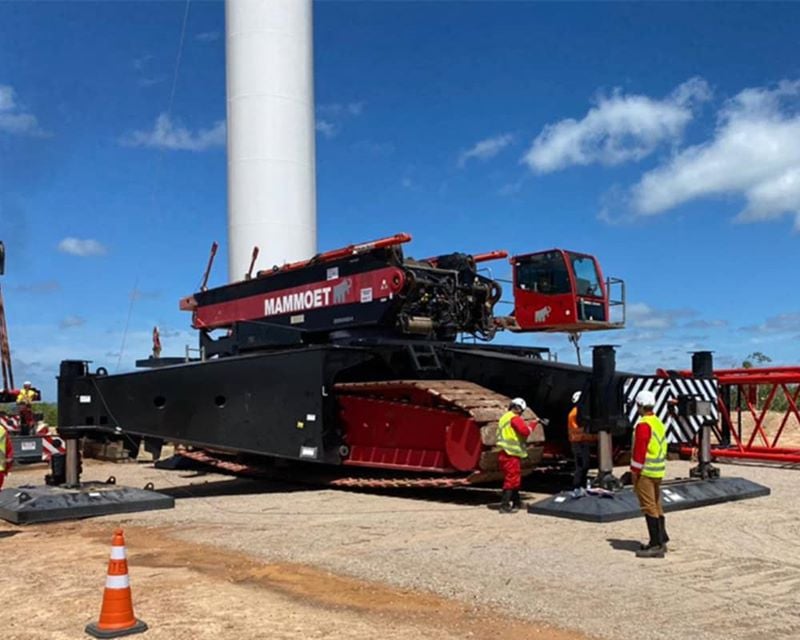

While still in Texas, the crane underwent a full conversion from the standard 9.9-meter-wide tracks to the newly updated 5.3-meter-wide narrow track configuration. The crane’s software was also upgraded and thoroughly checked by internal teams as well as factory Demag technicians.

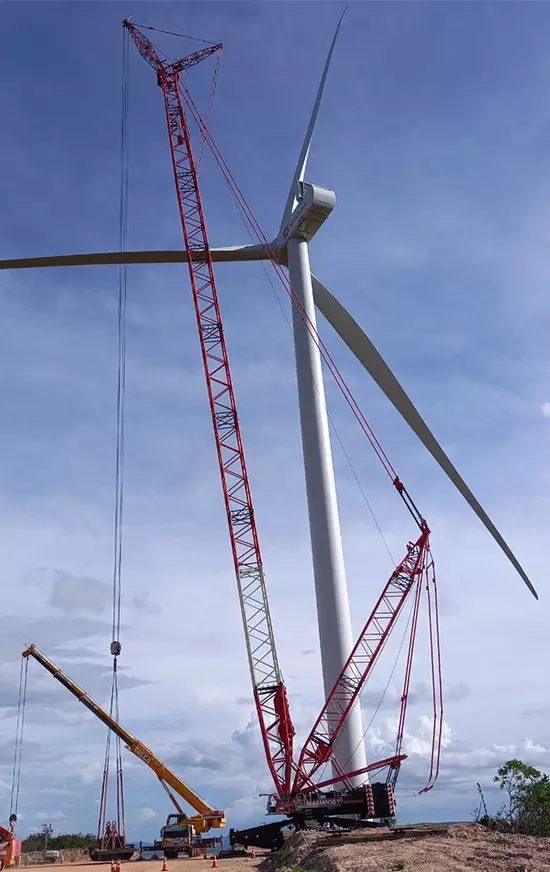

Along with the track conversion, Mammoet’s team invested in additional boom sections and a fixed jib, which fully complete the arrangement required to execute wind work. With these modifications, the crane has the capability to lift turbine components with hub heights of up to 125 meters tall.

This fleet extension increases Mammoet’s capacity in the region, complementing the existing fleet while adding flexibility and greater availability for work. Once the upgrade was complete, team members from the United States and Latin America collaborated on the logistics and safe relocation of the crane.

Mammoet has an unparalleled level of expertise in the wind energy industry, having been involved in the engineering, lifting, transport, and installation of more than 9,000 turbines around the world. From the earliest wind projects, Mammoet has transported, erected, and installed turbines for all kinds of on- and offshore projects, from a single prototype to large-scale wind farms and under many different conditions.
